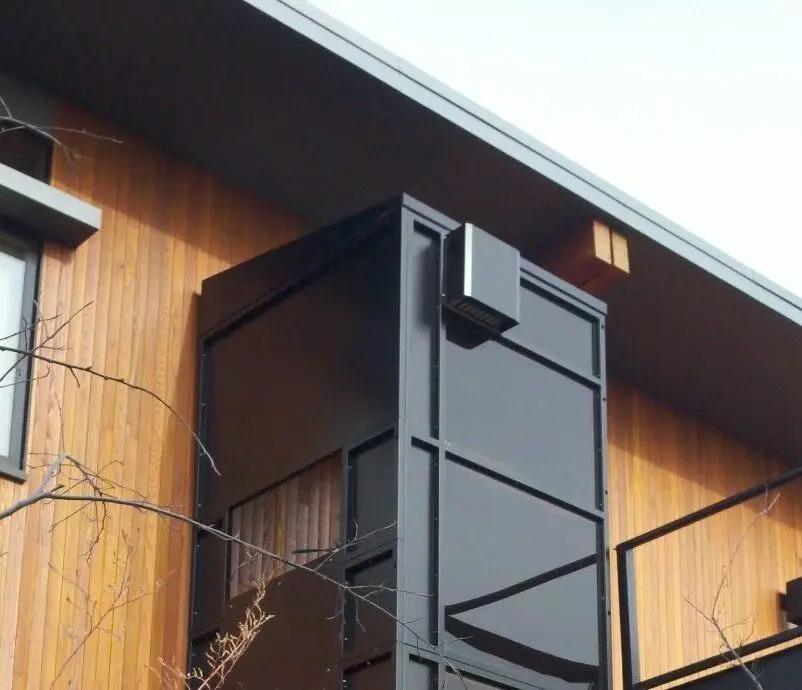

Cibes | Symmetry Enclosed Wheelchair Lifts Serving Pittsburgh, Buffalo, Rochester, Syracuse, Erie, and Surrounding Areas
The Cibes | Symmetry Enclosed lift meets ADA ASME A18.1, ICC A117.1, and NFPA 70 standards and is built for straightforward installation. It offers versatility, making it suitable for both residential and commercial use.
In private homes, the Enclosed vertical platform lift occupies slightly more space than its open-style counterpart and supports travel heights of up to 168 inches. In commercial environments, these lifts are used for places like parking garages, airport terminals, and venues with elevated seating areas.
Lifting Height: Up to 168″
Capacity: 750 lbs
No shaft required
Made in the USA
Symmetry Enclosed Lift Features:
- Installation:Indoor/Outdoor
- Rated load:750 lbs
- Power supply:115 VAC/25A/1 PH, 230 VAC/15A/1 PH (not available for Hydraulic)
- Speed:10 FPM (20 FPM for Accelerated Acme and Hydraulic)
- Min headroom:80″
- Lift pit:3″ pit or 0″ with Access Ramp
- Drive system:Standard Acme Screw, Accelerated Acme Screw, or Hydraulic
- Max travel:168″
- Max number of stops:4
- Lift controls:Constant Pressure (Hold to Run)
- Motor Power:1 1/2 HP (3 HP for Hydraulic)
- Machine room:Self Contained
- Door configuration:Same side, Straight Through, 90 Degree, 3 Opening
- Directives and standards:ASME A18.1
Main Advantages:
- Proudly made in the U.S.A.: High-quality, US-made vertical platform lifts. Cibes Symmetry: Your trusted lift solutions provider with national reach and local service.
- No shaft required: All-inclusive lift solution. The enclosure is the shaft and it comes with it.
- Design options: Experience enhanced customization options with Symmetry Enclosure, tailoring it to perfectly suit your unique requirements.
- Integrated doors and locks: Landing interlocks keep doors closed/locked when the platform is at another landing, ensuring safety at all times.
