Garaventa Genesis Staage Portable Wheelchair Lift Serving Pittsburgh, Buffalo, Rochester, Syracuse, Erie, and Surrounding Areas

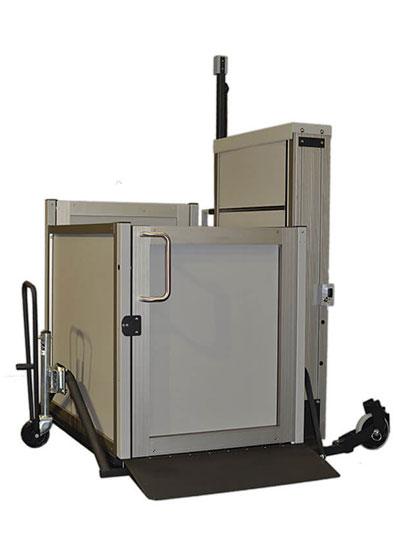

The Genesis STAAGE lift offers a practical, affordable way to provide access over low-rise barriers like stages and podiums. Designed with user-friendliness in mind, the lift can be easily moved out of sight when not in use. The STAAGE model includes essential safety features, in line with Garaventa Lift’s commitment to quality.
Vertical Travel: Up to 44″
Capacity: 750 lbs
Lift Footprint: 68 7/8” x 57 3/4” including wheels
Portable

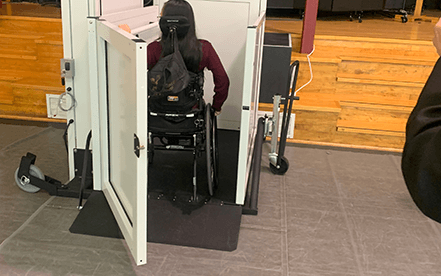

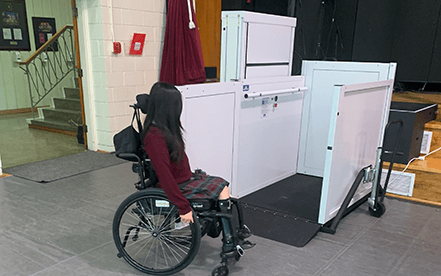

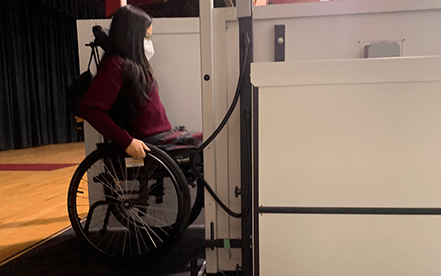

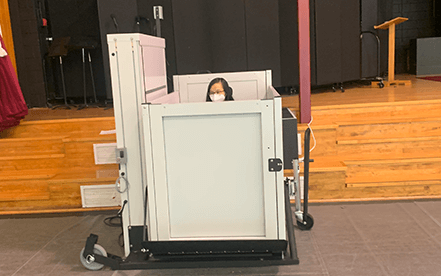

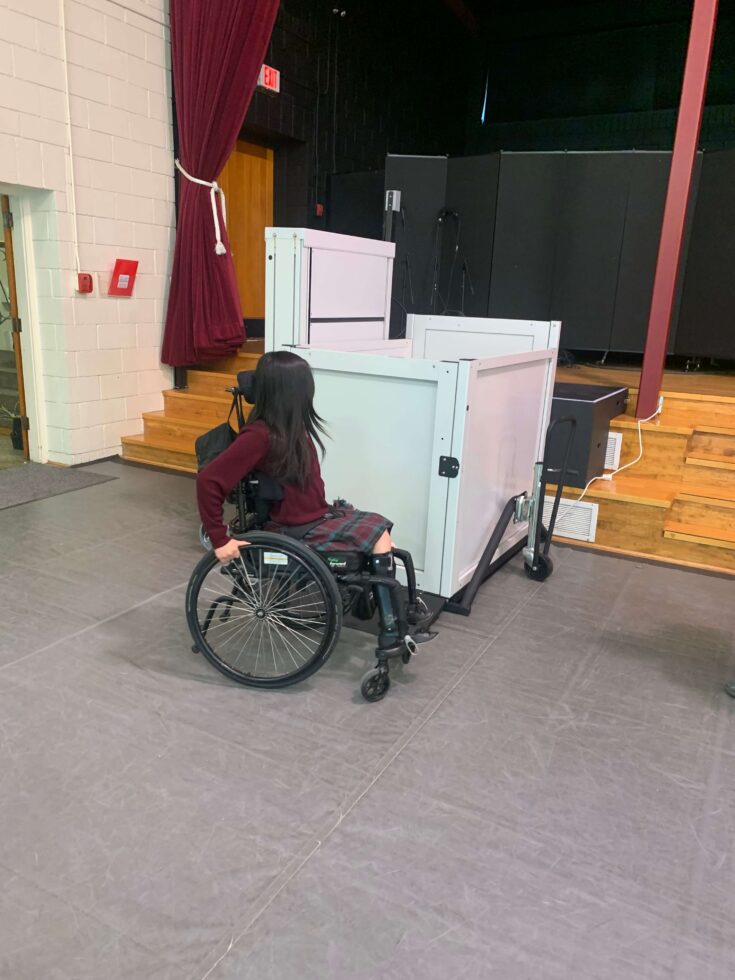

GARAVENTA PORTABLE VERTICAL PLATFORM LIFT GALLERY
Standard Genesis STAAGE Portable VPL (Vertical Platform Lift) Features:
- Call Stations: Located at each landing (optional for upper), with an easy-to-use directional call switch and lockout key.
- Platform Controls: A directional switch on the platform sidewall allows easy movement up or down; the lift stops when released.
- Emergency Stop/Alarm: Located on the platform sidewall, this button stops the lift and sounds an alarm when pressed.
- Automatic Ramp: The ramp raises when the platform is in motion and automatically opens when the platform reaches the landing.
- Safety Pan: Sensors under the platform stop it if an obstacle is detected during descent.
- Platform Gates: Electro-mechanical locks prevent operation unless gates are fully closed.
- Grab Rail: Positioned on the platform side panel for additional support.
- Manual Lowering: A hand wheel allows manual operation to move the lift in case of power loss.
Optional Enhancements:
- Custom Colors: The STAAGE frame and components can be painted in a range of RAL colors.
- Lower Landing Gate: Optional gate available for added safety at the lower landing.
- Upper Landing Call Station: Adjustable to match the specific lifting height requirements.
