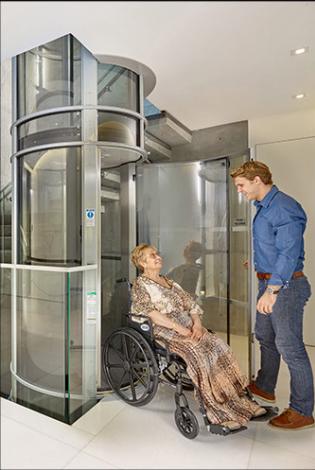

PVE52 Serving Pittsburgh, Buffalo, Rochester, Syracuse, Erie, and Surrounding Areas

Standard Features:

• No pit, hoist way, or machine room required
• Self supporting structure
• 35 ft total rise Max
• 20 ft/min traveling speed
• Two to Four stops
• External cylinder diameter: 52 11/16 inches (1,316mm)
• Internal cabin diameter: 43 1/2 inches (1118mm)
• Internal cabin height: 6’7” (79 inches/ 2007mm)
• Entrance way opening: 32 inches (813mm)
• Weight of unit: 2025 lbs for 2 stop w/ 9’ ceilings
• Power Supply: 35 AMP 220VAC
• Through Floor or Balcony Mount Landings
• In-line and 180° door openings
• Aluminum and polycarbonate cylinder structure
• Automatic interior LED lighting and fan
• Mechanical emergency safety brake system
• One year limited manufacturer warranty
• ASME A17.7 Certified

Options:

• Colors: Standard Dark Gray, Light Gray, and White
• Phone
• Cabin Key Lock
• Earthquake Brackets

Drawing & Specs:

2 Stop 3 Stop 4 Stop Technical Specs
