Shaftway Vertical Platform Lifts & Shaftway Wheelchair Lifts Serving Pittsburgh, Buffalo, Rochester, Syracuse, Erie & Surrounding Areas
Ideal for settings where a shaftway is pre-constructed by a contractor, the Cibes | Symmetry shaftway lift from Access Elevator integrates smoothly into existing structures. With a variety of custom paint colors and design options and essential safety features such as grab rails, non-skid platform surfaces, alarms, and emergency stop switches, this lift ensures user safety and an easy integration into your home or commercial space.
Vertical Travel: Up to 168″
Capacity: 750 lbs
Use: Indoor/Outdoor
Shaftway Lift
Our Shaftway Wheelchair Lift is unique and industry leading in the following:
- Manufactured and owned in the United States USA
- Long lasting with cost effective repairs
- Industry leading 4 year warranty
- ONLY Vertical Wheelchair Lift using the patented A.W.A.R.E. Diagnostics System: Active Wiring, Accessories, Relay & Electronics Diagnosis System (A.W.A.R.E.) is a fully functional on-board diagnostics system to manage and monitor every critical function of the lift. Available only through your local Access Distributor.
- Classy in appearance, whisper quiet, energy saving, environmentally friendly
- Unsurpassed in safety precautions
- Our shaftway wheelchair lift can match the style and quality of any home with over 200 optional colors.
- 1 code-compliant and designed for ease of installation.
Standard Features:
- 750 lb capacity
- Speed: 10 FPM with a 1HP, 115V motor
- Lifting height: up to 168”
- Steel constructed with electrostatic, powder-coated finish
- Self Diagnostic System with Digital Display

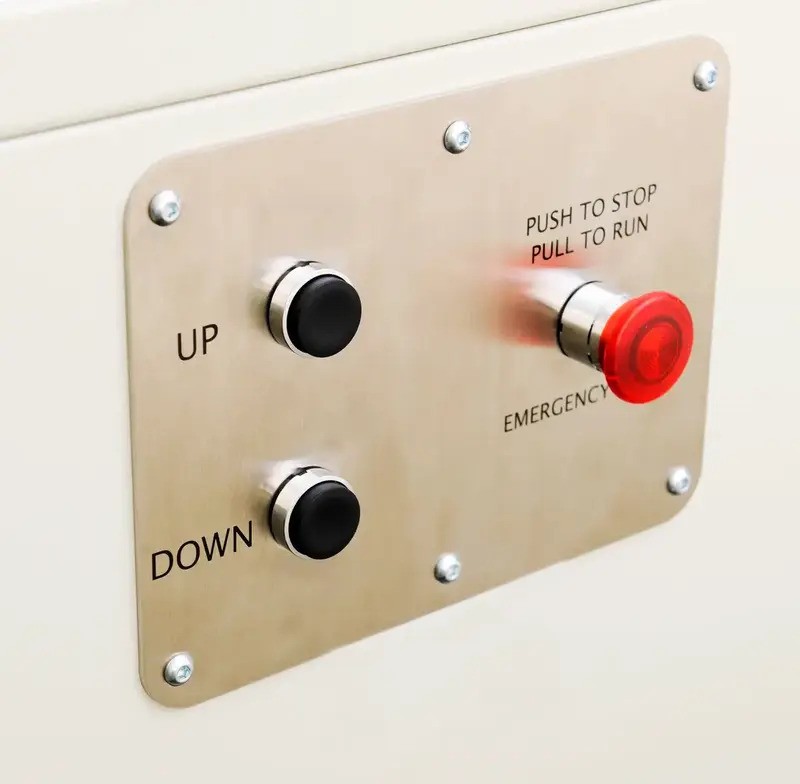

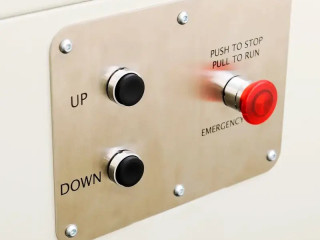

- Constant pressure up/down control switch installed on the platform
- Constant pressure, elevator-style, hall call control stations provided at each landing
Optional Enhancements:
- 230V motor
- Remote mounted controller

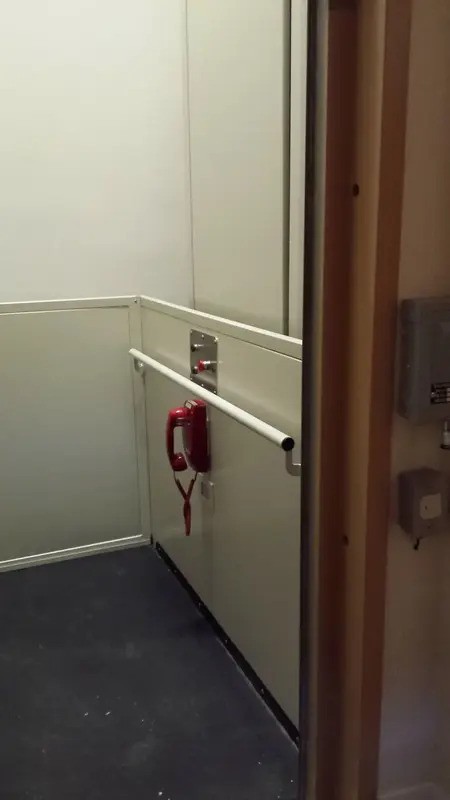

- ADA phone for both indoor and outdoor models
- Emergency lights
- Over 200 Available colors
- Key switch to lock platform
- Flip-up ramp
- Battery back-up
Safety Features:

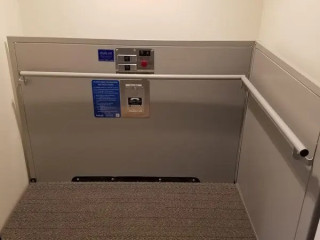

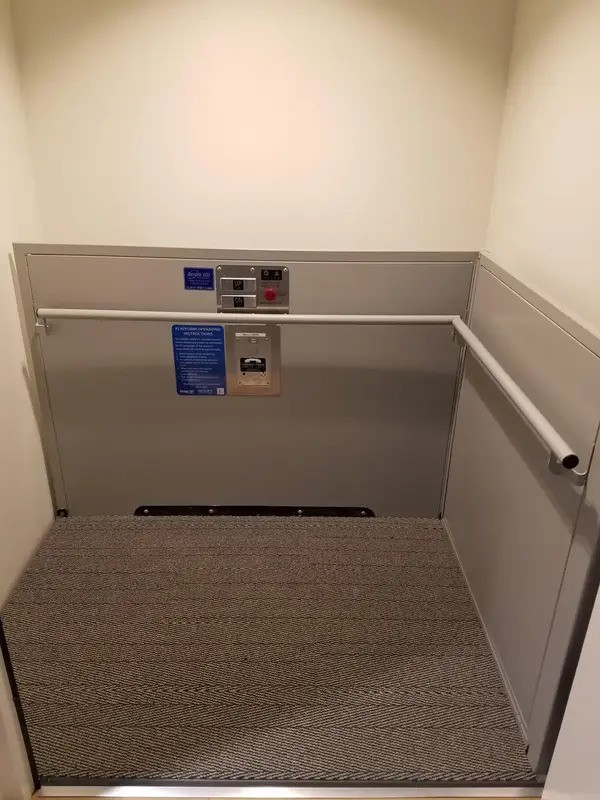

- Nonskid platform surface
- Obstruction safety panel under platform (when not installed within a runway enclosure)
- Alarm and emergency stop switch
- Grab rail
- Landing interlocks keep door locked when the lift is on another floor
- Upper final limit
Platform Sizes:
36” W x 48” D
36” W x 54” D
36” W x 60” D
42” W x 60” D
Vertical Platform Lift Gate/Door Options:
42” platform gate*
42” upper landing gate*
80” landing gate*
Non-fire-rated red oak door**

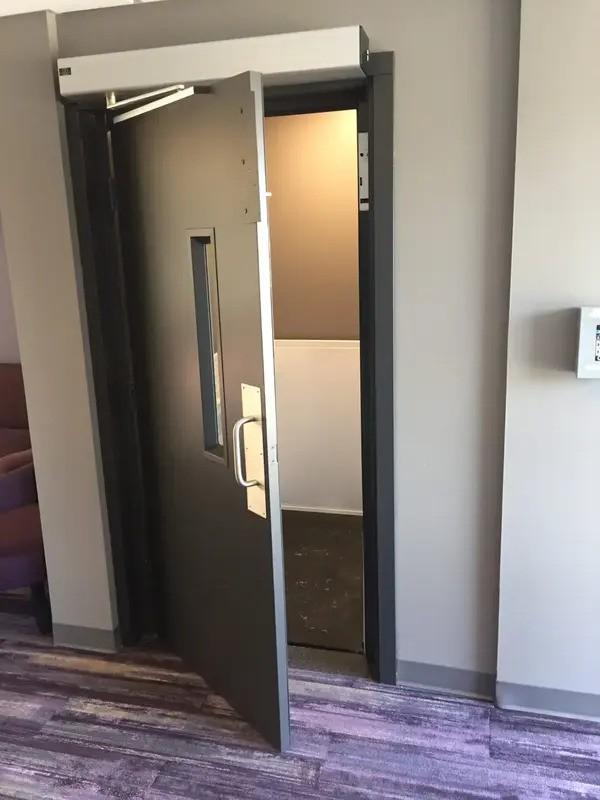

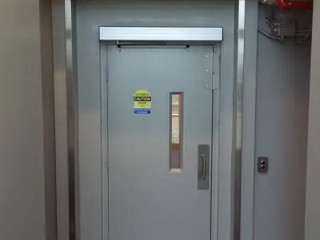

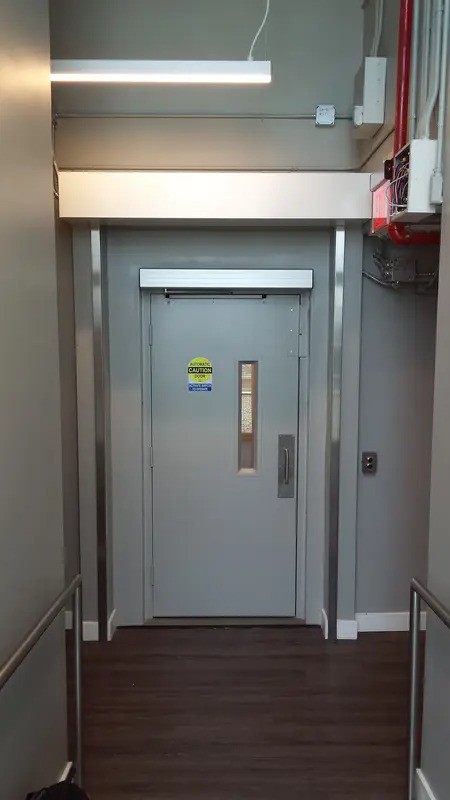

Fire-rated steel door
* Available with optional acrylic insert
** Also available in other wood choices, by request
VPC Drive Options:
- Screw Drive
- Screw Drive with battery back-up
- Hydraulic Drive
HOW MUCH WILL MY SHAFTWAY PLATFORM LIFT COST?
Shaftway VPL Gallery
