Garaventa Genesis Enclosure Model Enclosed Wheelchair Lift Serving Pittsburgh, Buffalo, Rochester, Syracuse, Erie, and Surrounding Areas

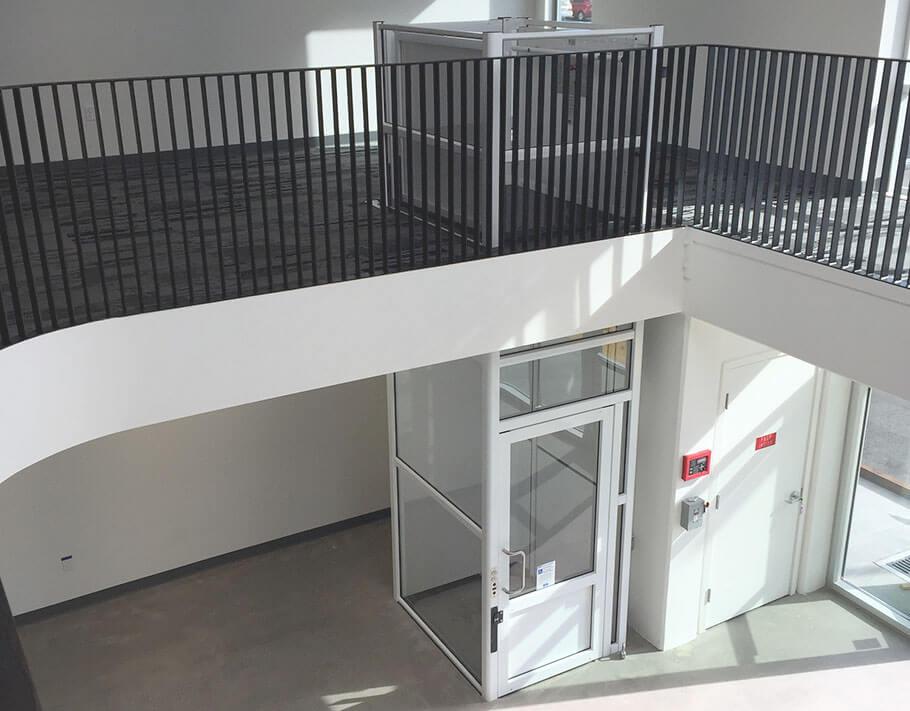

The Genesis Enclosure Model is a vertical platform wheelchair lift suitable for indoor or outdoor installation, public buildings, or private residences. The Genesis Vertical Platform Lift features enclosure walls with built-in doors and gates, a drive mast, a passenger platform, and user-friendly controls. It can be customized with optional features to meet specific requirements, and the wall panels, doors, and gates are available in a wide range of colors and finishes to match various preferences.
Vertical Travel: Up to 171″
Capacity: 750 lbs
Platform Dimensions: 37 1/4” x 54”
Enclosed
Standard Garaventa Genesis Enclosure Wheelchair Lift Features:
- Rated Load: Standard 750 lbs (340 kg) with a safety factor of 5
- Speed: Leadscrew – 3 meters (10 ft) per minute at full load | Hydraulic – 5.2 meters (17 ft) per minute at full load
- Travel Range: Leadscrew – up to 6 feet | Hydraulic – up to 14 feet
- Safety Features: Garaventa doors and gates equipped with Garaventa interlocks and internal closers | Sturdy 16 gauge galvanized steel platform side walls 1070mm (42 1/8”) | Continuous pressure directional control switches and illuminated and audible emergency stop switch | Full length grab rail on platform side wall panel
- Leadscrew Drive System: Motor: 2 HP (1750 RPM) | Motor Drive Type: ACME screw (1” diameter) | Mains Supply: North American Models: 120 VAC on a dedicated 20 amp circuit, International Models: 208-240 VAC on a dedicated 16 amp circuit
- Hydraulic Drive System: 3 HP DC (2.2 KW) complete with auxiliary power system | Motor Drive Type: Chained Hydraulic (Dual 5/8” ANSI 50 chains) | Mains Supply: North American Models 120 VAC on a dedicated 15 amp circuit, International Models 208-240 VAC on a dedicated 16 amp circuit
- Controls: Keyless Controls (No key required for call stations and platform controls) | Directional Controls – Continuous pressure switches | Control Voltage: 24 VDC
- Power Requirements: 120 VAC single phase | Optional 208-240 VAC single phase
Optional Enhancements:
- Power Door Operators (ANSI/BHMA A156.19 compliant)
- Custom platform sizes available
- Illuminated and tactile constant pressure directional buttons
- Arrival gong and digital floor display
- Steel, plexiglas, or glass enclosure panels
- Choice of RAL colors
- Autodialer phone (ADA compliant)
- Keyed operation
- Custom applications (Consult Garaventa Lift)
- Battery-powered emergency lowering (Leadscrew drive only)
- Full-time battery operation (suitable for low-use applications ONLY – Hydraulic drive)
- Fan and ventilation system with thermostatic controls (requires continuous mains power)
