Garaventa OPAL Unenclosed Wheelchair Lift Serving Pittsburgh, Buffalo, Rochester, Syracuse, Erie, and Surrounding Areas

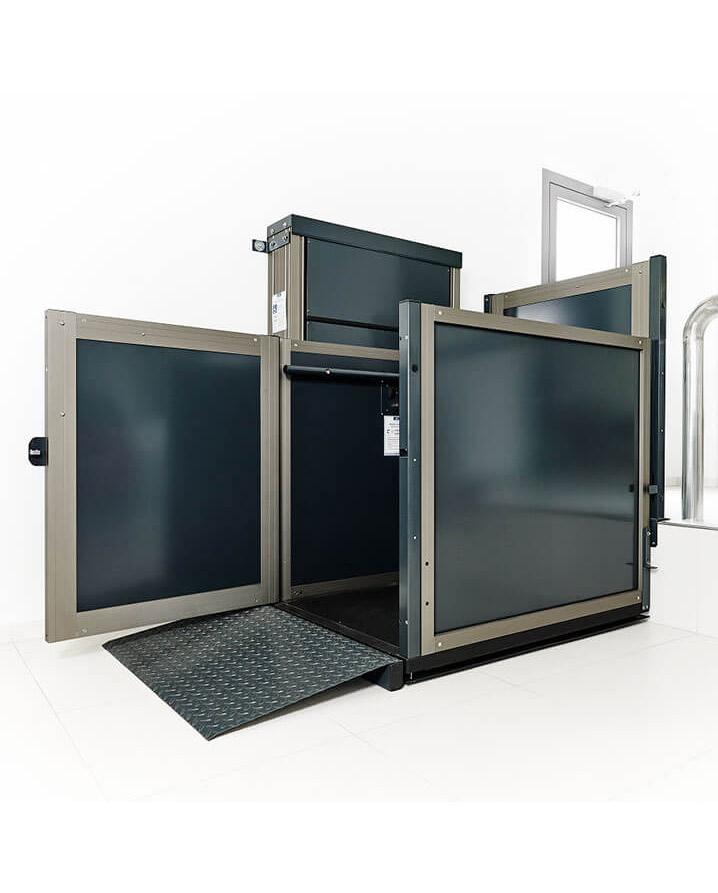

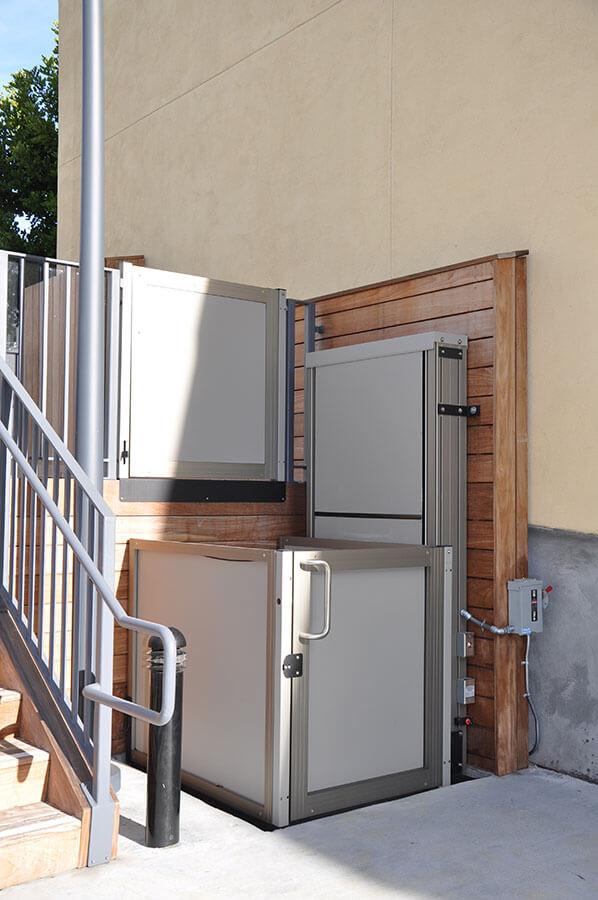

The Genesis OPAL vertical lift easily transports passengers up and down short vertical distances, for applications such as stages and porches. The platform walls, platform gate and optional automatic folding ramp travel with the platform creating a safety barrier around the passenger.
Vertical Travel: Up to 63″
Capacity: 750 lbs
Lift Footprint: 36” x 48 7/8”
Unenclosed
Standard Garaventa OPAL Unenclosed Wheelchair Lift Features:
- Safety Gates: Lower gate travels with the platform between landings, and the upper gate is fixed to the top landing.
- Gate Interlocks: Mechanical interlocks prevent gate opening unless the platform is at the landing, with electrical monitoring for added security.
- Drive System Options: Choose between a 2 HP Leadscrew Drive or a 3 HP Hydraulic Drive with continuous power and backup.
- Lifting Height: Accommodates up to 63 inches (1600mm) of travel.
- Controls: Key-less call stations with rocker switches and platform controls with a directional switch and emergency stop/alarm button.
- Under-Platform Safety Pan: Five waterproof switches stop the platform if an obstruction is detected.
- Finishes: Anodized aluminum with Satin Grey textured panels for a sleek and durable appearance.
- Emergency Lowering (Hydraulic): Pull knob lowers the platform to a landing during emergencies.
- Emergency Lowering (Leadscrew): Hand wheel allows manual lowering during power outages.
Optional Enhancements:
- Full-Time Battery Operation (Hydraulic): Provides power from a 24VDC battery pack charged by building mains, suitable for low-usage applications.
- Battery-Powered Emergency Lowering (Leadscrew): Automatically lowers the lift during a power failure.
- Optional Finishes: Steel panels and aluminum extrusions can be painted in a variety of RAL colors.
- Custom Colors or Finishes: Panels can feature custom color matching, graphic imaging, or finishes like wood, Formica, architectural metals, or materials up to 1/2″ thick.
- Garaventa Lift Power Door Operator: Automatically opens doors or gates when the platform arrives at a landing.
- Keyed Platform Controls: Optional keyed controls on the platform may be required in certain jurisdictions.
- Autodialer Phone: ADA-compliant hands-free phone that dials pre-programmed numbers with the push of a button.
- Folding Ramp: Automatically folds up when the platform travels upward.
- Stationary Ramp: Provides a smooth transition to the platform for floor-mounted units.
- Folding Seat: Offers seating for passengers who do not use wheelchairs.
- Auxiliary Powered Drive (Hydraulic): Allows passengers to use during a power failure.
